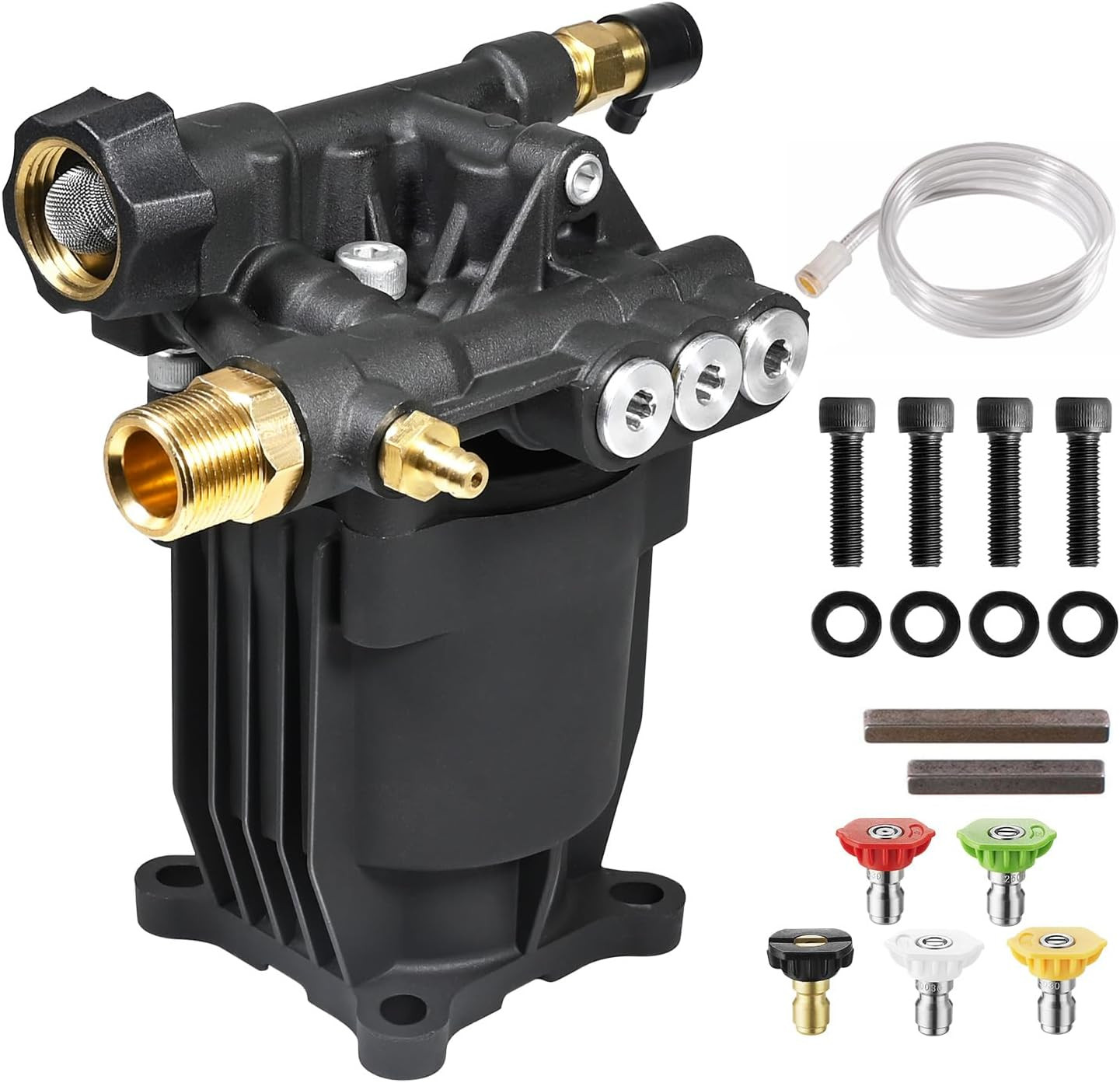

520006 SIMPSON Pressure Washer Pump OEM Technologies 3200 PSI at 2.5

Manufactured by FNA Group this replacement pump kit is a highly efficient pump that minimizes engine load while delivering top performance across a wide range of pressure washer applications.

All OEM Technologies Phoenix replacement pumps have stainless steel pistons for improved seal life and are equipped with high-performance double high-pressure seals as well as oversized rear ball bearings to reduce friction and allow for long-lasting performance in the most demanding cleaning environments. Also, it features a stainless steel integrated new unloader featuring an industry-leading built-in easy-start system.

The 520006 Pump Kit has the industry standard 4 bolt mounting pattern to a 3/4 inch shaft motor and is driven with a 3/16 Square Key.

OEM Technology pumps are used on many portable cold water power washers manufactured by FNA Group under private labels, including Simpson, DeWalt, Delco, Excel, WW Grainger, Troy-Bilt, Cub Cadet, Black and Decker Stanley, and brands or pressure washers.

These 520006 Pumps kits with the Phoenix Series pumps are designed to be mounted horizontally with an SAE J609A industry standard flange bolt pattern.

Features:

• 3300 PSI @ 2.4 GPM 8.6CAH12A Pump

• PowerBoost Technology

• Unloader assembly with the built-in easy-start system.

• Thermal relief protection to prevent pump overheating

• Rear oversized radial ball bearings are installed for better wear and friction resistance, and precision ceramic-coated pistons for extended seal life.

• Crankcase is manufactured from fully anodized die-cast aluminum for corrosion protection and are sealed to prevent contamination and lubrication failures.

• Gas engine flange and 3/4 hollow shaft that fits most horizontal shaft engines.

Specifications:

• PSI: 3300 Max

• GPM: 2.4

• Inlet Port: 3/4" GH

• Discharge Port: 22MM Threaded male fitting

• Inlet Pressure Range: 10-60 PSI

• Thermal Relief Port: 1/4" NPT

• Shaft Diameter: 3/4"

• Flange Bolt Pattern: SAE J-609A

• Key Way: 3/16" x 1 Inch

• Pump Oil Capacity: 6.0 fl oz.

• PowerBoost®: Yes

• Head: Anodized Aluminum

This 520006 Pump from OEM Technologies pump comes with a 2-year limited warranty.
